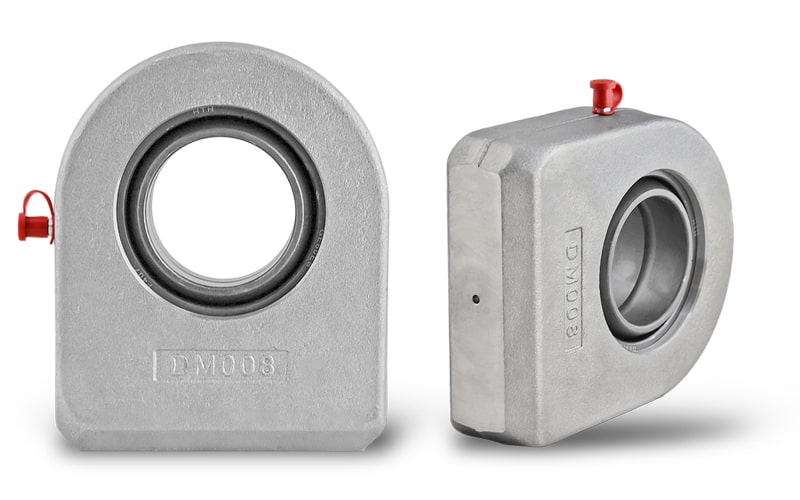

Dikdörtgen Tip Kaynaklı Rot Mafsalları

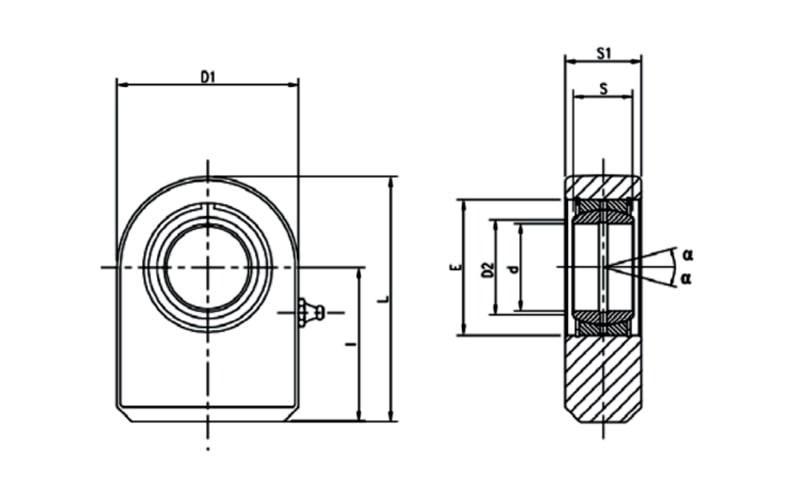

| KOD | d | s | ı | D1 | D2 | S1 | L | a |
|---|---|---|---|---|---|---|---|---|
| DGN-20 | 20 | 16 | 38 | 50 | 24.1 | 19 | 63 | 9 |
| DGN-25 | 25 | 20 | 45 | 55 | 29.3 | 23 | 72.5 | 7 |
| DGN-30 | 30 | 22 | 51 | 65 | 34.2 | 28 | 83.5 | 6 |
| DGN-35 | 35 | 25 | 61 | 83 | 39.7 | 30 | 102.5 | 6 |
| DGN-40 | 40 | 28 | 69 | 101 | 45 | 35 | 119 | 7 |
| DGN-45 | 45 | 32 | 77 | 111 | 50.7 | 60 | 132 | 7 |
| DGN-50 | 50 | 35 | 88 | 123 | 56 | 40 | 149.5 | 6 |
| DGN-60 | 60 | 44 | 100 | 140 | 66.8 | 50 | 170 | 6 |
| DGN-70 | 70 | 49 | 115 | 164 | 77.8 | 55 | 197 | 6 |
| DGN-80 | 80 | 55 | 141 | 180 | 89.4 | 60 | 231 | 6 |
| DGN-90 | 90 | 60 | 150 | 226 | 98.1 | 65 | 263 | 6 |
| DGN-100 | 100 | 70 | 170 | 250 | 109.5 | 70 | 295 | 6 |
