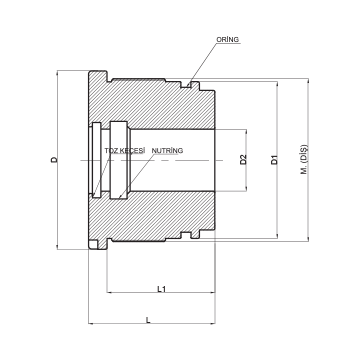

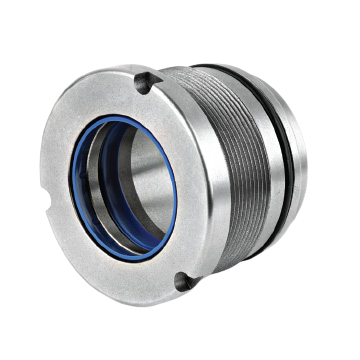

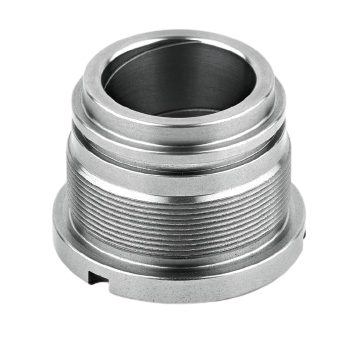

GG-25 / GG-26 Kalite Hidrolik Silindir Boğaz (Kep)
| ÜRÜN KODU | NUTRİNG | TOZ KEÇESİ | ORİNG | D | D1 | D2 | L | L1 | DİŞ |
|---|---|---|---|---|---|---|---|---|---|
| DK-32/16 | YOK | 16x24x5/7 | 28x2,5 | 40 | 33 | 16 | 40 | 32 | 36x1,5 |
| DK-32/18 | 18x25x5 | 18x26x5/7 | 28x2,5 | 40 | 33 | 18 | 40 | 32 | 36x1,5 |
| DK-32/20 | 20x28x5 | 20x28x5/7 | 28x2.5 | 40 | 33 | 20 | 40 | 32 | 36x1,5 |
| DK-32/22 | 22x30x6 | 22x30x5/7 | 28x2,5 | 40 | 33 | 22 | 40 | 32 | 36x1,5 |
| DK-35/20 | 20x28x5 | 20x28x5/7 | 31x3 | 45 | 36 | 20 | 40 | 32 | 39x1,5 |
| DK-35/22 | 22x30x6 | 22x30x5/7 | 31x3 | 45 | 36 | 22 | 40 | 32 | 39x1,5 |
| DK-35/25 | 25x35x6 | 25x33x5/7 | 31x3 | 45 | 36 | 25 | 40 | 32 | 39x1.5 |
| DK-40/16 | YOK | 16x24x5/7 | 36x3 | 50 | 41 | 16 | 40 | 32 | 45x1.5 |
| DK-40/20 | 20x28x5 | 20x28x5/7 | 36x3 | 50 | 41 | 20 | 40 | 32 | 45x1,5 |
| DK-40/22 | 22x30x6 | 22x30x5/7 | 36x3 | 50 | 41 | 22 | 40 | 32 | 45x1,5 |
| DK-40/25 | 25x35x6 | 25x33x5/7 | 36x3 | 50 | 41 | 25 | 40 | 32 | 45x1,5 |
| DK-40/28 | 28x38x6 | 28x36x5/7 | 36x3 | 50 | 41 | 28 | 40 | 32 | 45x1,5 |
| DK-45/20 | 20x28x5 | 20x28x5/7 | 39.69x3.53 | 55 | 46 | 20 | 40 | 32 | 50x1.5 |
| DK-45/25 | 25x35x6 | 25x33x5/7 | 39.69x3.53 | 55 | 46 | 25 | 45 | 37 | 50x1,5 |
| DK-45/28 | 28X38X6 | 28X36X5/7 | 39,69X3,53 | 55 | 46 | 28 | 45 | 37 | 50X1,5 |
| DK-45/30 | 30x40x8 | 30x38x5/7 | 39.69x3.53 | 55 | 46 | 30 | 45 | 37 | 50x1,5 |
| DK-50/20 | 20x28x5 | 20x28x5/7 | 44.45x3.53 | 60 | 51 | 20 | 45 | 37 | 55x1.5 |
| DK-50/22 | 22X30X6 | 22X30X5/7 | 44,45X3,53 | 60 | 51 | 22 | 45 | 37 | 55X1,5 |
| DK-50/25 | 25x35x6 | 25x33x5/7 | 44.45x3.53 | 60 | 51 | 25 | 45 | 37 | 55x1,5 |
| DK-50/28 | 28x38x6 | 28x36x5/7 | 44.45x3.53 | 60 | 51 | 28 | 45 | 37 | 55x1,5 |
| DK-50/30 | 30x40x8 | 30x38x5/7 | 44.45x3.53 | 60 | 51 | 30 | 45 | 37 | 55x1,5 |
| DK-50/32 | 32x40x8 | 32x40x5/7 | 44.45x3.53 | 60 | 51 | 32 | 45 | 37 | 55x1.5 |
| DK-50/35 | 35x45x8 | 35x43x5/7 | 44.45x3.53 | 60 | 51 | 35 | 45 | 37 | 55x1,5 |
| DK-50/36 | 36x46x8 | 36x44x5/7 | 44.45x3.53 | 60 | 51 | 36 | 45 | 37 | 55x1,5 |
| DK-55/25 | 25x35x6 | 25x33x5/7 | 47.63x3.53 | 65 | 56 | 25 | 52 | 42 | 60x1.5 |
| DK-55/30 | 30x40x8 | 30x38x5/7 | 47.63x3.53 | 65 | 56 | 30 | 52 | 42 | 60x1,5 |
| DK-55/35 | 35x45x8 | 35x43x5/7 | 47.63x3.53 | 65 | 56 | 35 | 52 | 42 | 60x1,5 |
| DK-60/25 | 25X35X6 | 25x33x5/7 | 53,57X3,53 | 70 | 61 | 25 | 52 | 42 | 65X1,5 |
| DK-60/30 | 30x40x8 | 30x38x5/7 | 53.57x3.53 | 70 | 61 | 30 | 52 | 42 | 65x1,5 |
| DK-60/35 | 35x45x8 | 35x43x5/7 | 53.57x3.53 | 70 | 61 | 35 | 52 | 42 | 65x1,5 |
| DK-60/40 | 40x50x10 | 40x48x5/7 | 53.57x3.53 | 70 | 61 | 40 | 52 | 42 | 65x1,5 |
| DK-60/45 | 45x55x10 | 45x55x5/7 | 53.57x3.53 | 70 | 61 | 45 | 52 | 42 | 65x1.5 |
| DK-63/30 | 30x40x8 | 30x38x5/7 | 57.15x3.53 | 75 | 64 | 30 | 52 | 42 | 69x1,5 |
| DK-63/35 | 35x45x8 | 35x43x5/7 | 57.15x3.53 | 75 | 64 | 35 | 52 | 42 | 69x1,5 |
| DK-63/36 | 36x46x8 | 36x44x5/7 | 57.15x3.53 | 75 | 64 | 36 | 52 | 42 | 69x1,5 |
| DK-63/40 | 40x50x10 | 40x48x5/7 | 57.15x3.53 | 75 | 64 | 40 | 52 | 42 | 69x1,5 |
| DK-63/45 | 45x55x10 | 45x55x5/7 | 57.15x3.53 | 75 | 64 | 45 | 52 | 42 | 69x1,5 |
| DK-63/50 | YOK | 50x60x5/7 | 57.15x3.53 | 75 | 64 | 50 | 52 | 42 | 69x1,5 |
| DK-65/30 | 30x40x8 | 30x38x5/7 | 59.92x3.53 | 80 | 66 | 30 | 63 | 52 | 70x1,5 |
| DK-65/35 | 35x45x8 | 35x43x5/7 | 59.92x3.53 | 80 | 66 | 35 | 63 | 52 | 70x1,5 |
| DK-65/40 | 40x50x10 | 40x48x5/7 | 59.92x3.53 | 80 | 66 | 40 | 63 | 52 | 70x1,5 |
| DK-65/45 | 45x55x10 | 45x55x5/7 | 59.92x3.53 | 80 | 66 | 45 | 63 | 52 | 70x1,5 |
| DK-70/25 | 25x35x6 | 25x33x5/7 | 65.10x3.53 | 85 | 71 | 25 | 63 | 52 | 75x2 |
| DK-70/30 | 30x40x8 | 30x38x5/7 | 65.10x3.53 | 85 | 71 | 30 | 63 | 52 | 75x2 |
| DK-70/35 | 35x45x8 | 35x43x5/7 | 65.10x3.53 | 85 | 71 | 35 | 63 | 52 | 75x2 |
| DK-70/40 | 40x50x10 | 40x48x5/7 | 65.10x3.53 | 85 | 71 | 40 | 63 | 52 | 75x2 |
| DK-70/45 | 45x55x10 | 45x55x5/7 | 65.10x3.53 | 85 | 71 | 45 | 63 | 52 | 75x2 |
| DK-70/50 | 50x60x10 | 50x60x5/7 | 65.10x3.53 | 85 | 71 | 50 | 63 | 52 | 75x2 |
| DK-70/55 | 55x65x10 | 55x65x5/7 | 65.10x3.53 | 85 | 71 | 55 | 63 | 52 | 75x2 |
| DK-75/30 | 30x40x8 | 30x38x5/7 | 69.85x3.53 | 90 | 76 | 30 | 63 | 52 | 80x2 |
| DK-75/35 | 35x45x8 | 35x43x5/7 | 69.85x3.53 | 90 | 76 | 35 | 63 | 52 | 80x2 |
| DK-75/40 | 40x50x10 | 40x48x5/7 | 69.85x3.53 | 90 | 76 | 40 | 63 | 52 | 80x2 |
| DK-75/45 | 45x55x10 | 45x55x5/7 | 69.85x3.53 | 90 | 76 | 45 | 63 | 52 | 80x2 |
| DK-75/50 | 50x60x10 | 50x60x5/7 | 69.85x3.53 | 90 | 76 | 50 | 63 | 52 | 80x2 |
| DK-75/55 | 55x65x10 | 55x65x5/7 | 69.85x3.53 | 90 | 76 | 55 | 63 | 52 | 80x2 |
| DK-80/30 | 30x40x8 | 30x38x5/7 | 74x4 | 95 | 81 | 30 | 63 | 52 | 85x2 |
| DK-80/35 | 35x45x8 | 35x43x5/7 | 74x4 | 95 | 81 | 35 | 63 | 52 | 85x2 |
| DK-80/40 | 40x50x10 | 40x48x5/7 | 74x4 | 95 | 81 | 40 | 63 | 52 | 85x2 |
| DK-80/45 | 45x55x10 | 45x55x5/7 | 74x4 | 95 | 81 | 45 | 63 | 52 | 85x2 |
| DK-80/50 | 50x60x10 | 50x60x5/7 | 74x4 | 95 | 81 | 50 | 63 | 52 | 85x2 |
| DK-80/55 | 55x65x10 | 55x65x5/7 | 74x4 | 95 | 81 | 55 | 63 | 52 | 85x2 |
| DK-80/56 | 56x66x10 | 56x66x5/7 | 74x4 | 95 | 81 | 56 | 63 | 52 | 85x2 |
| DK-80/60 | 60x70x10 | 60x70x5/7 | 74x4 | 95 | 81 | 60 | 63 | 52 | 85x2 |
| DK-85/35 | 35x45x8 | 35x43x5/7 | 79x4 | 100 | 86 | 35 | 63 | 52 | 90x2 |
| DK-85/40 | 40x50x10 | 40x48x5/7 | 79x4 | 100 | 86 | 40 | 63 | 52 | 90x2 |
| DK-85/45 | 45x55x10 | 45x55x5/7 | 79x4 | 100 | 86 | 45 | 63 | 52 | 90x2 |
| DK-85/50 | 50x60x10 | 50x60x5/7 | 79x4 | 100 | 86 | 50 | 63 | 52 | 90x2 |
| DK-85/55 | 55x65x10 | 55x65x5/7 | 79x4 | 100 | 86 | 55 | 63 | 52 | 90x2 |
| DK-85/60 | 60x70x10 | 60x70x5/7 | 79x4 | 100 | 86 | 60 | 63 | 52 | 90x2 |
| DK-90/35 | 35x45x8 | 35x43x5/7 | 84x4 | 105 | 91 | 35 | 63 | 52 | 95x2 |
| DK-90/40 | 40x50x10 | 40x48x5/7 | 84x4 | 105 | 91 | 40 | 63 | 52 | 95x2 |
| DK-90/45 | 45x55x10 | 45x55x5/7 | 84x4 | 105 | 91 | 45 | 63 | 52 | 95x2 |
| DK-90/50 | 50x60x10 | 50x60x5/7 | 84x4 | 105 | 91 | 50 | 63 | 52 | 95x2 |
| DK-90/55 | 55x65x10 | 55x65x5/7 | 84x4 | 105 | 91 | 55 | 63 | 52 | 95x2 |
| DK-90/60 | 60x70x10 | 60x70x5/7 | 84x4 | 105 | 91 | 60 | 63 | 52 | 95x2 |
| DK-90/65 | 65x75x10 | 65x75x5/7 | 84x4 | 105 | 91 | 65 | 63 | 52 | 95x2 |
| DK-100/40 | 40x50x10 | 40x48x5/7 | 90x5 | 115 | 101 | 40 | 82 | 70 | 105x2 |
| DK-100/45 | 45x55x10 | 45x55x5/7 | 90x5 | 115 | 101 | 45 | 82 | 70 | 105x2 |
| DK-100/50 | 50x60x10 | 50x60x5/7 | 90x5 | 115 | 101 | 50 | 82 | 70 | 105x2 |
| DK-100/55 | 55x65x10 | 55x65x5/7 | 90x5 | 115 | 101 | 55 | 82 | 70 | 105x2 |
| DK-100/56 | 56x66x10 | 56x66x5/7 | 90x5 | 115 | 101 | 56 | 82 | 70 | 105x2 |
| DK-100/60 | 60x70x10 | 60x70x5/7 | 90x5 | 115 | 101 | 60 | 82 | 70 | 105x2 |
| DK-100/65 | 65x75x10 | 65x75x5/7 | 90x5 | 115 | 101 | 65 | 82 | 70 | 105x2 |
| DK-100/70 | 70x80x12 | 70x80x5/7 | 90x5 | 115 | 101 | 70 | 82 | 70 | 105x2 |
| DK-100/75 | 75x85x12 | 75x87x12/7 | 90x5 | 115 | 101 | 75 | 82 | 70 | 105x2 |
| DK-100/80 | 80x90x12 | 80x92x12/7 | 90x5 | 115 | 101 | 80 | 82 | 70 | 105x2 |
| DK-110/50 | 50x60x10 | 50x60x5/7 | 100x5 | 130 | 111 | 50 | 82 | 70 | 115x2 |
| DK-110/55 | 55x65x10 | 55x65x5/7 | 100x5 | 130 | 111 | 55 | 82 | 70 | 115x2 |
| DK-110/56 | 56x66x10 | 56x66x5/7 | 100x5 | 130 | 111 | 56 | 82 | 70 | 115x2 |
| DK-110/60 | 60x70x10 | 60x70x5/7 | 100x5 | 130 | 111 | 60 | 82 | 70 | 115x2 |
| DK-110/65 | 65x75x10 | 65x75x5/7 | 100x5 | 130 | 111 | 65 | 82 | 70 | 115x2 |
| DK-110/70 | 70x80x12 | 70x80x5/7 | 100x5 | 130 | 111 | 70 | 82 | 70 | 115x2 |
| DK-110/75 | 75x85x12 | 75x87x12/7 | 100x5 | 130 | 111 | 75 | 82 | 70 | 115x2 |
| DK-110/80 | 80x90x12 | 80x92x12/7 | 100x5 | 130 | 111 | 80 | 82 | 70 | 115x2 |
| DK-115/50 | 50x60x10 | 50x60x5/7 | 105x5 | 130 | 116 | 50 | 82 | 70 | 120x2 |
| DK-115/55 | 55x65x10 | 55x65x5/7 | 105x5 | 130 | 116 | 55 | 82 | 70 | 120x2 |
| DK-115/60 | 60x70x10 | 60x70x5/7 | 105x5 | 130 | 116 | 60 | 82 | 70 | 120x2 |
| DK-115/65 | 65x75x10 | 65x75x5/7 | 105x5 | 130 | 116 | 65 | 82 | 70 | 120x2 |
| DK-115/70 | 70x80x12 | 70x80x5/7 | 105x5 | 130 | 116 | 70 | 82 | 70 | 120x2 |
| DK-115/75 | 75x85x12 | 75x87x7/12 | 105x5 | 130 | 116 | 75 | 82 | 70 | 120x2 |
| DK-115/80 | 80x90x12 | 80x92x7/12 | 105x5 | 130 | 116 | 80 | 82 | 70 | 120x2 |
| DK-120/45 | 45x55x10 | 45x55x5/7 | 110X5 | 140 | 121 | 45 | 82 | 70 | 125X2 |
| DK-120/50 | 50x60x10 | 50x60x5/7 | 110x5 | 140 | 121 | 50 | 82 | 70 | 125x2 |
| DK-120/55 | 55x65x10 | 55x65x5/7 | 110x5 | 140 | 121 | 55 | 82 | 70 | 125x2 |
| DK-120/60 | 60x70x10 | 60x70x5/7 | 110x5 | 140 | 121 | 60 | 82 | 70 | 125x2 |
| DK-120/65 | 65x75x10 | 65x75x5/7 | 110x5 | 140 | 121 | 65 | 82 | 70 | 125x2 |
| DK-120/70 | 70x80x12 | 70x80x5/7 | 110x5 | 140 | 121 | 70 | 82 | 70 | 125x2 |
| DK-120/75 | 75x85x12 | 75x87x7/12 | 110x5 | 140 | 121 | 75 | 82 | 70 | 125x2 |
| DK-120/80 | 80x90x12 | 80x92x7/12 | 110x5 | 140 | 121 | 80 | 82 | 70 | 125x2 |
| DK-120/85 | 85x95x12 | 85x97x7/12 | 110x5 | 140 | 121 | 85 | 82 | 70 | 125x2 |
| DK-120/90 | 90x100x12 | 90x102x7/12 | 110x5 | 140 | 121 | 90 | 82 | 70 | 125x2 |
| DK-125/50 | 50x60x10 | 50x60x5/7 | 115x5 | 145 | 126 | 50 | 82 | 70 | 130x2 |
| DK-125/55 | 55x65x10 | 55x65x5/7 | 115x5 | 145 | 126 | 55 | 82 | 70 | 130x2 |
| DK-125/60 | 60x70x10 | 60x70x5/7 | 115x5 | 145 | 126 | 60 | 82 | 70 | 130x2 |
| DK-125/65 | 65x75x10 | 65x75x5/7 | 115x5 | 145 | 126 | 65 | 82 | 70 | 130x2 |
| DK-125/70 | 70x80x12 | 70x80x5/7 | 115x5 | 145 | 126 | 70 | 82 | 70 | 130x2 |
| DK-125/75 | 75x85x12 | 75x87x7/12 | 115x5 | 145 | 126 | 75 | 82 | 70 | 130x2 |
| DK-125/80 | 80x90x12 | 80x92x7/12 | 115x5 | 145 | 126 | 80 | 82 | 70 | 130x2 |
| DK-125/85 | 85x95x12 | 85x97x7/12 | 115x5 | 145 | 126 | 85 | 82 | 70 | 130x2 |
| DK-125/90 | 90x100x12 | 90x102x7/12 | 115x5 | 145 | 126 | 90 | 82 | 70 | 130x2 |
| DK-130/60 | 60x70x10 | 60x70x5/7 | 120x6 | 150 | 131 | 60 | 102 | 90 | 135x2 |
| DK-130/70 | 70x80x12 | 70x80x5/7 | 120x6 | 150 | 131 | 70 | 102 | 90 | 135x2 |
| DK-130/80 | 80x90x12 | 80x92x7/12 | 120x6 | 150 | 131 | 80 | 102 | 90 | 135x2 |
| DK-130/90 | 90x100x12 | 90x102x7/12 | 120x6 | 150 | 131 | 90 | 102 | 90 | 135x2 |
| DK-130/100 | 100x115x12 | 100x112x7/12 | 120x6 | 150 | 131 | 100 | 102 | 90 | 135x2 |
| DK-140/60 | 60x70x10 | 60x70x5/7 | 130x6 | 160 | 141 | 60 | 102 | 90 | 145x2 |
| DK-140/65 | 65x75x10 | 65x75x5/7 | 130x6 | 160 | 141 | 65 | 102 | 90 | 145x2 |
| DK-140/70 | 70x80x12 | 70x80x5/7 | 130x6 | 160 | 141 | 70 | 102 | 90 | 145x2 |
| DK-140/75 | 75X85X12 | 75X87X7/12 | 130X6 | 160 | 141 | 75 | 102 | 90 | 145X2 |
| DK-140/80 | 80x90x12 | 80x92x7/12 | 130x6 | 160 | 141 | 80 | 102 | 90 | 145x2 |
| DK-140/85 | 85x95x12 | 85x97x7/12 | 130x6 | 160 | 141 | 85 | 102 | 90 | 145x2 |
| DK-140/90 | 90x100x12 | 90x102x7/12 | 130x6 | 160 | 141 | 90 | 102 | 90 | 145x2 |
| DK-140/100 | 100x115x12 | 100x112x7/12 | 130x6 | 160 | 141 | 100 | 102 | 90 | 145x2 |
| DK-150/60 | 60x70x10 | 60x70x5/7 | 140x6 | 170 | 151 | 60 | 102 | 90 | 155x2 |
| DK-150/70 | 70x80x12 | 70x80x5/7 | 140x6 | 170 | 151 | 70 | 102 | 90 | 155x2 |
| DK-150/80 | 80x90x12 | 80x90x7/12 | 140x6 | 170 | 151 | 80 | 102 | 90 | 155x2 |
| DK-150/90 | 90x100x12 | 90x102x7/12 | 140x6 | 170 | 151 | 90 | 102 | 90 | 155x2 |
| DK-150/100 | 100x115x12 | 100x112x7/12 | 140x6 | 170 | 151 | 100 | 102 | 90 | 155x2 |
| DK-150/110 | 110X125X12 | 110x122x7/12 | 140X6 | 170 | 151 | 110 | 102 | 90 | 155X2 |
| DK-160/60 | 60x70x10 | 60x70x5/7 | 150x6 | 180 | 161 | 60 | 102 | 90 | 165x2 |
| DK-160/70 | 70x80x12 | 70x80x5/7 | 150x6 | 180 | 161 | 70 | 102 | 90 | 165x2 |
| DK-160/80 | 80x90x12 | 80x92x7/12 | 150x6 | 180 | 161 | 80 | 102 | 90 | 165x2 |
| DK-160/90 | 90x100x12 | 90x102x7/12 | 150x6 | 180 | 161 | 90 | 102 | 90 | 165x2 |
| DK-160/100 | 100x115x12 | 100x112x7/12 | 150x6 | 180 | 161 | 100 | 102 | 90 | 165x2 |
| DK-160/110 | 110x125x12 | 110x122x7/12 | 150x6 | 180 | 161 | 110 | 102 | 90 | 165x2 |
| DK-160/120 | 120x135x15 | 120x132x7/12 | 150x6 | 180 | 161 | 120 | 102 | 90 | 165x2 |
| DK-170/80 | 80x90x12 | 80x92x7/12 | 160x6 | 190 | 171 | 80 | 102 | 90 | 175x2 |
| DK-170/90 | 90x100x12 | 90x102x7/12 | 160x6 | 190 | 171 | 90 | 102 | 90 | 175x2 |
| DK-170/100 | 100x115x12 | 100x112x7/12 | 160x6 | 190 | 171 | 100 | 102 | 90 | 175x2 |
| DK-170/110 | 110x125x12 | 110x122x7/12 | 160x6 | 190 | 171 | 110 | 102 | 90 | 175x2 |
| DK-170/120 | 120x135x15 | 120x132x7/12 | 160x6 | 190 | 171 | 120 | 102 | 90 | 175x2 |
| DK-180/70 | 70x80x12 | 70x80x5/7 | 170x6 | 200 | 181 | 70 | 102 | 90 | 185x2 |
| DK-180/80 | 80x90x12 | 80x90x7/12 | 170x6 | 200 | 181 | 80 | 102 | 90 | 185x2 |
| DK-180/90 | 90x100x12 | 90x102x7/12 | 170x6 | 200 | 181 | 90 | 102 | 90 | 185x2 |
| DK-180/100 | 100x115x12 | 100x112x7/12 | 170x6 | 200 | 181 | 100 | 102 | 90 | 185x2 |
| DK-180/110 | 110x125x12 | 110x122x7/12 | 170x6 | 200 | 181 | 110 | 102 | 90 | 185x2 |
| DK-180/120 | 120x135x15 | 120x132x7/12 | 170x6 | 200 | 181 | 120 | 102 | 90 | 185x2 |
| DK-180/130 | 130x150x15 | 130x142x7/12 | 170x6 | 200 | 181 | 130 | 102 | 90 | 185x2 |
| DK-180/140 | 140x160x15 | 140x152x7/12 | 170x6 | 200 | 181 | 140 | 102 | 90 | 185x2 |
| DK-200/90 | 90x100x12 | 90x102x7/12 | 190x6 | 220 | 201 | 100 | 102 | 90 | 205x2 |
| DK-200/100 | 100x115x12 | 100x112x7/12 | 190x6 | 220 | 201 | 100 | 102 | 90 | 205x2 |
| DK-200/110 | 110x125x12 | 110x122x7/12 | 190x6 | 220 | 201 | 110 | 102 | 90 | 205x2 |
| DK-200/120 | 120x135x15 | 120x132x7/12 | 190x6 | 220 | 201 | 120 | 102 | 90 | 205x2 |
| DK-200/130 | 130x150x15 | 130x142x7/12 | 190x6 | 220 | 201 | 130 | 102 | 90 | 205x2 |
| DK-200/140 | 140x160x15 | 140x152x7/12 | 190x6 | 220 | 201 | 140 | 102 | 90 | 205x2 |
| DK-220/100 | 100x115x12 | 100x112x7/12 | 210x6 | 250 | 221 | 100 | 102 | 90 | 225x2 |
| DK-220/110 | 110x125x12 | 110x122x7/12 | 210x6 | 250 | 221 | 110 | 102 | 90 | 225x2 |
| DK-220/120 | 120x135x15 | 120x132x7/12 | 210x6 | 250 | 221 | 120 | 102 | 90 | 225x2 |
| DK-220/130 | 130x150x15 | 130x142x7/12 | 210x6 | 250 | 221 | 130 | 102 | 90 | 225x2 |
| DK-220/140 | 140x160x15 | 140x152x7/12 | 210x6 | 250 | 221 | 140 | 102 | 90 | 225x2 |
